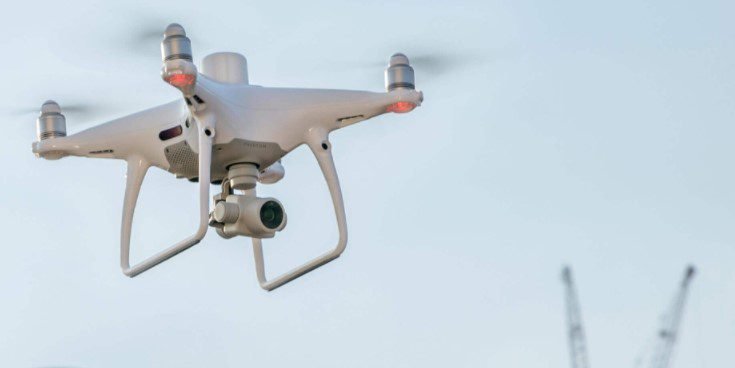

DJI Phantom 4 RTK

Visionary Intelligence. Elevated Accuracy.

Upgrade your next mapping mission with the Phantom 4 RTK – the most compact and accurate low altitude mapping solution.

Next Generation Mapping

DJI has rethought its drone technology from the ground-up, revolutionizing its systems to achieve a new standard for drone accuracy – offering Phantom 4 RTK customers centimeter-accurate data while requiring fewer ground control points.

Centimeter-Level Positioning System

A new RTK module is integrated directly into the Phantom 4 RTK, providing real-time, centimeter-level positioning data for improved absolute accuracy on image metadata. In addition to optimized flight safety and precise data collection, the Phantom 4 RTK stores satellite observation data to be used for Post Processed Kinematics (PPK), which can be conducted using DJI Cloud PPK Service*. Fit the Phantom 4 RTK to any workflow, with the ability to connect this positioning system to the D-RTK 2 High Precision GNSS Mobile Station, or NTRIP (Network Transport of RTCM via Internet Protocol) using a 4G dongle or WiFi hotspot.

*DJI Cloud PPK Service is currently not available in in the US, Canada, Hong Kong SAR, or Macau SAR. Support is coming soon.

Gather Accurate Data with TimeSync

To take full advantage of the Phantom 4 RTK’s positioning modules, the new TimeSync system was created to continually align the flight controller, camera and RTK module. Additionally, TimeSync ensures each photo uses the most accurate metadata and fixes the positioning data to optical center of the lens – optimizing the results from photogrammetric methods and letting the image achieve centimeter-level positioning data.

Precise Imaging System

Capture the best image data with a 1-inch, 20-megapixel CMOS sensor. Mechanical shutter makes mapping missions or regular data capture seamless as the Phantom 4 RTK can move while taking pictures without the risk of rolling shutter blur. Due to the high resolution, the Phantom 4 RTK can achieve a ground sample distance (GSD) of 2.74 cm at 100 meters flight altitude.To ensure each Phantom 4 RTK offers unparalleled accuracy, every single camera lens goes through a rigorous calibration process, with parameters saved into each image’s metadata, letting post-processing software adjust uniquely for every user.

Built for Surveyors

Offering a range of control schemes and complimentary technologies,
the DJI Phantom 4 RTK is developed to provide survey-grade results with greater efficiency than ever before.

Purpose-Built Application

A new DJI GS RTK app and Remote Controller with built-in screen, giving users a streamlined control scheme for surveying missions and other data acquisition scenarios.The GS RTK app allows pilots to intelligently control their Phantom 4 RTK, with multiple planning modes, including Photogrammetry (2D and 3D), Waypoint Flight, Terrain Awareness, Block Segmentation*, and more. Users can also import KML/KMZ files to optimize the workflow for their missions.With the built-in screen, pilots can clearly view and plan their missions on an ultra-bright, 5.5-inch HD display.

Access a Variety of 3rd Party Applications

Pilots with experience using 3rd party apps on DJI drones can access the world’s leading drone app ecosystem for their Phantom 4 RTK with the SDK Remote Controller. Users can plug in a compatible Android or iOS device and install any compatible DJI Mobile SDK-enabled app to harness the full power of their Phantom 4 RTK.

OcuSync Transmission System

Enjoy stable and reliable HD image and video transmission at distances of up to 7 km, great for mapping larger sites*.

*Unobstructed, free of interference, when FCC compliant. Maximum flight range specification is a proxy for radio link strength and resilience. Always fly your drone within visual line of sight unless otherwise permitted.

Seamless Compatibility with D-RTK 2 Mobile Station

Support your Phantom 4 RTK missions with the D-RTK 2 Mobile Station – providing real-time differential data to the drone and forming an accurate surveying solution, or acquire accurate location coordinates when used as an RTK rover. The Mobile Station’s rugged design and OcuSync transmission system ensures you can gain centimeter-level accurate data with your Phantom 4 RTK in any condition.

Start Mapping Today

With a built-in flight planning app (GS RTK) and an easy method to collect RTK data (RTK Network or D-RTK 2 Mobile Station), pilots have a full solution for any surveying, mapping or inspection workflow – right out of the box.

Specifications DJI Phantom 4 RTK

Takeoff Weight1391 g
Diagonal Distance (Propellers Excluded)350 mm
Max Service Ceiling Above Sea Level6000 m
Max Ascent Speed6 m/s (automatic flight); 5 m/s (manual control)
Max Descent Speed3 m/s
Max Speed31 mph (50 kph) (P-mode); 36 mph (58 kph) (A-mode)
Max Flight Time30 min
Operating Temperature0° to 40° C
Operating Frequency2.4000 GHz to 2.4835 GHz
Hover Accuracy Range (with RTK)Vertical: ± 0.1 m; Horizontal: ± 0.1 m
Hover Accuracy Range (without RTK)Vertical: ± 0.1 m (with vision positioning); ± 0.5 m (with GNSS positioning)
Horizontal: ± 0.3 m (with vision positioning); ± 1.5 m (with GNSS positioning)
Image Position CompensationThe position of the camera center is relative to the phase center of the onboard D-RTK antenna under the aircraft body’s axis:(36, 0, and 192 mm) already applied to the image coordinates in Exif data. The positive x, y, and z axes of the aircraft body point to the forward, rightward, and downward of the aircraft, respectively.
Single-Frequency High-Sensitivity GNSSGPS + GLONASS + Galileo

Camera

Sensors1″ CMOS; Effective pixels: 20 M
LensFOV 84°;8.8 mm / 24 mm(35 mm format equivalent:24 mm);
f/2.8 – f/11, auto focus at 1 m – ∞
ISO RangeVideo:100-3200(Auto)
100-6400(Manual);
Photo:100-3200(Auto)
100-12800(Manual)
Shutter Speed8 – 1/2000 s (mechanical); 8 – 1/8000 s (electronic)
Max Image Size4864×3648(4:3);
5472×3648(3:2)
Photo FormatJPEG
Video FormatMOV
Supported File SystemsFAT32 (<= 32 GB); exFAT (> 32 GB)
Supported SD CardsMicroSD, Max Capacity: 128 GB. Class 10 or UHS-1 rating required Write speed≥15 MB/s

Price: 5.952,00 €

VAT is included. Price without D-RTK.

D-RTK

HIGH PRECISION GNSS MOBILE STATION

OPTIMIZED ACCURACY.
ULTIMATE RELIABILITY.

D-RTK 2 Mobile Station is DJI’s upgraded high-precision GNSS receiver that supports all major global satellite navigation systems, providing real-time differential corrections that generate centimeter-level positioning data for improved relative accuracy.

Centimeter-Level Positioning

D-RTK 2 Mobile Station fully supports GPS, GLONASS, Beidou, and GALILEO signals. Easy and quick to set up, the D-RTK 2 Mobile Station provides real-time differential data for drones to achieve centimeter-level positioning accuracy. The built-in high-gain antenna offers better signal reception from more satellites even when obstructions are present.

Stay Connected for Any Mission

D-RTK 2 Mobile Station supports communication via 4G, OcuSync, WiFi, and LAN, ensuring uninterrupted, stable data transmission under any application scenario. Up to 5 remote controllers* can be connected to the D-RTK 2 Mobile Station simultaneously when used with DJI Agras drones, the Phantom 4 RTK, or the P4 Multispectral. When used with the Matrice 300 RTK, it can be connected to multiple aircraft, making coordinated operations involving multiple drones a possibility and significantly improving efficiency.

Durability You Can Trust

Featuring IP65 level ingress protection and a lightweight carbon fiber body, the D-RTK 2 Mobile Station is ultra-portable and up for any task, no matter how tough. The built-in IMUs monitor movements and calibrate the tilt sensors to alert the operator of any abnormalities during the mission, minimizing risks.

Specifications D-RTK

GNSS FrequencySimultaneously receive:
GPS: L1 C/A, L2, L5
BEIDOU: B1, B2, B3
GLONASS: F1, F2
Galileo: E1, E5A, E5B
Positioning AccuracyHorizontal:1 cm+ 1 ppm(RMS)
Vertical:2 cm+ 1 ppm(RMS)
1 ppm: For every 1 km increase in distance, the accuracy will be 1 mm less. For example, the horizontal accuracy is 1.1 cm when the receiving end is 1 km away from the base station.
Positioning Update Rate1 Hz, 2 Hz, 5 Hz, 10 Hz and 20 Hz
Initialization Reliability>99.9%
Dimensions(D-RTK 2 body with extension rod)168 mm×168 mm×1708 mm
IP RatingIP65
Communication DistanceOperating Mode 1/3
SRRC/NCC/FCC/MIC/KCC/CE: 2 km
(Unobstructed and free of interference, when the D-RTK 2 Mobile Station is used as a base station and the distance from the D-RTK 2 antenna to the bottom of the tripod is 1.8 m, when the difference in height between the remote controller and D-RTK 2 is less than 2 m, and when the remote controller is 1.2 m from ground level)

Operating Mode 4
Between the aircraft and mobile station:
NCC/FCC: 7 km; SRRC/MIC/KCC/CE: 5 km
Between the remote controller and mobile station: 200 m (Unobstructed and free of interference at a flying altitude of about 120 m, when the distance from the D-RTK 2 antenna to the bottom of the tripod is 1.8 m, and when the remote controller is 1.2 m from ground level)

Operating Mode 5
NCC/FCC: 12 km; SRRC/MIC/KCC/CE: 6 km
(Unobstructed and free of interference, when the distance from the D-RTK 2 antenna to the bottom of the tripod is 1.8 m)
Operating Temperature-20° to +55° C
Run TimeWB37 battery:>2 h
MG-12000P battery:>50 h
Power SourcesInternal battery WB37-4920mAh-7.6V
External battery (MG12000P)
AC power adapter

Price: Contact with us

VAT is included. P4 RTK Price with D-RTK.
